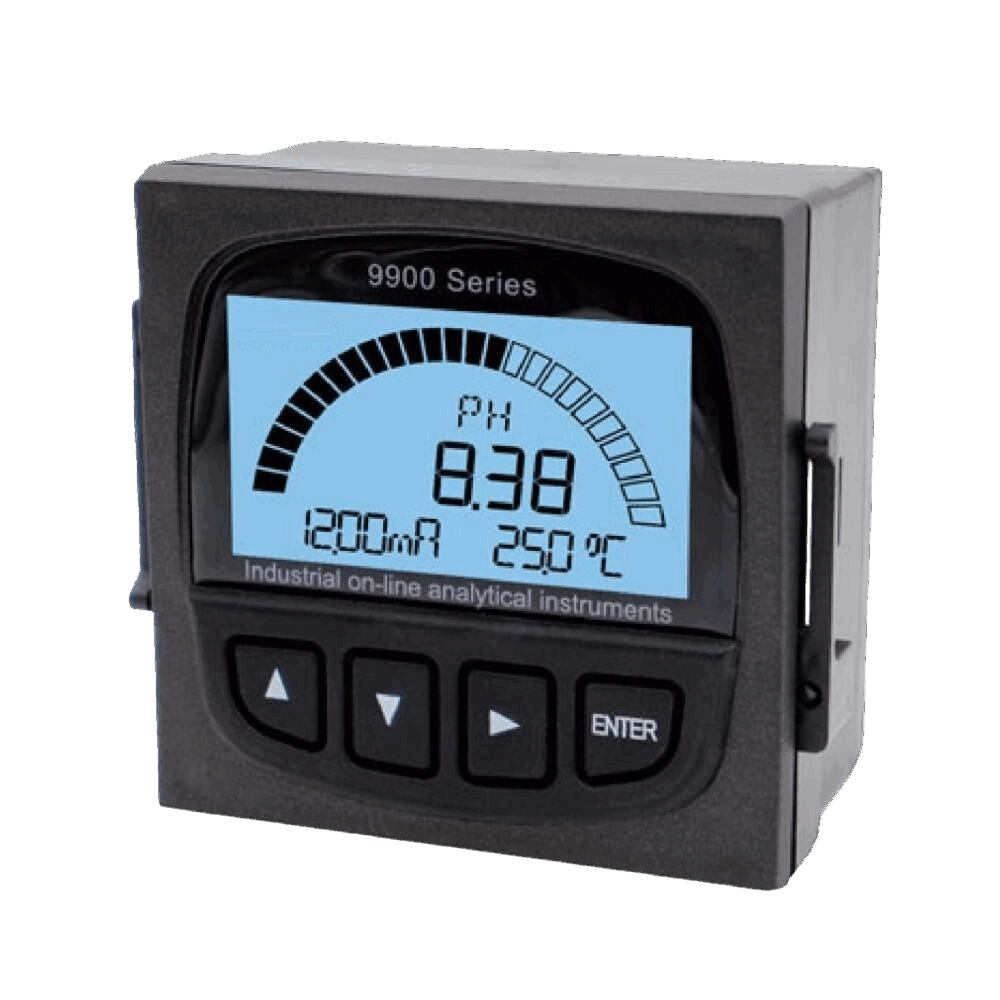

This model of industrial PH water quality automatic analyzer is a new PH analyzer, this meter has a high degree of intelligence and flexibility, can measure PH/ORP and temperature at the same time, widely used in urban sewage treatment plants, electric power, water supply, medicine, chemical, food and other industries, continuous measurement of solution PH/ORP value.
1. Diverse languages Factory standard Chinese interface, can switch English interface;
2. Various temperature compensation modes: PT1000, NTC10K and manual temperature compensation, are optional;
3.4-20MA OUTPUT, USING ISOLATION TECHNOLOGY, STRONG ANTI-INTERFERENCE ABILITY;
4. The high and low points of the three groups of relays can be switched arbitrarily, and the hysteresis can be adjusted manually to avoid frequent relay on/off;
5. Password management function to prevent misoperation by non-professionals;
6. The menu prompt function greatly facilitates the user's operation.
Model: pH/ORP-9500
Name: pH/ORP-9500 pH/ORP meter
Measuring range: pH:0~14 pH; ORP: -2000mV~2000mV;
Accuracy: pH:0.01; ORP: ≤±1mV (electronic unit);
Support buffer solution: pH: 4.00/6.86/9.18 or 4.01/7.00/10.00;
Temperature Compensation: PT1000,NTC10K
Singal Output: 4-20mA & RS485;
Control Output: High/Low limit + Temperature 3 relays control;
Power Supply: DC24V or AC220V;
Working Condition: Ambient temp:0～50℃, Relative humidity≤85%;
Calibration Method: 3-point calibration.
Power consumption: ≤7W;
Meter Sizes: 96×96×132mm (H×W×D);
Hole Size: 92×92mm(H×W);
Installation Mode: Embeded.
